Fluid Cooler:

• 15 row plate and fin black aluminum heavy duty engine transmission cooler.
• Extend transmission life by helping prevent heat-related transmission failures.
• Perfect for light to medium duty car, truck or SUV use with occasional towing.
• 1 1/4" wide plates and embossed turbulators, which maximize heat transfer.
• Dimensions: 2" x 9.4" x 13.4" with AN male hose fittings and GVW 22000 lbs.
• Oil cooler full capacity: 0.8L; Test pressure: 116psi and Burst pressure: 232psi.

Electric Fan:

• Universal 12 volt high performance 8" inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

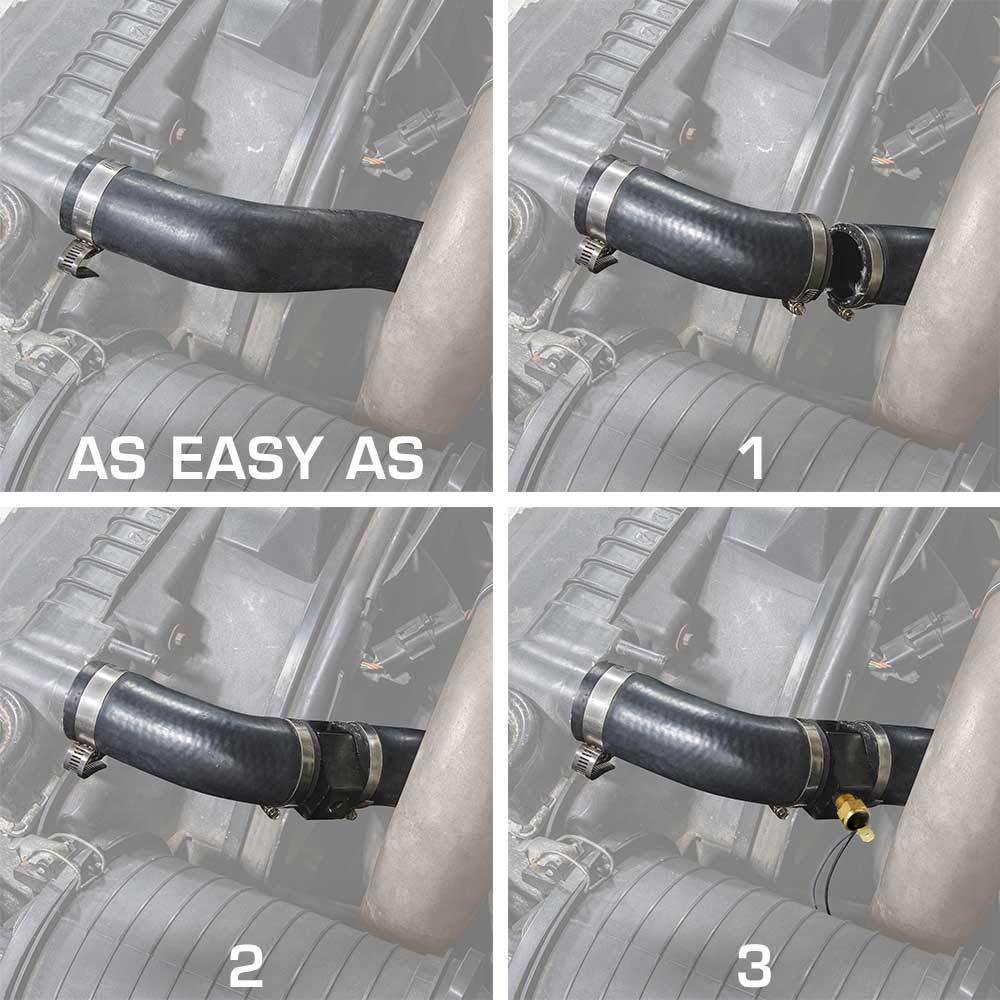

• Universal radiator hose electric fan thermostat temperature sensor.
• Anodized aluminum in-line fitting adapter in various diameter sizes.
• Preset to ground fan or 12v accessory at the selected temperature.
• Single pin 1/8" inch NPT brass thread-in probe grounding switch.
• Measures temp of any liquid including oil, water and coolant fluid.
