Fluid Cooler:

• 6 pass black aluminum light duty auto transmission oil cooler kit.
• Extend transmission life by helping prevent heat-related failures.
• Great for high-stressed smaller and mid-size auto transmissions.
• Efficient turbulation and ultrasonically soldered for high reliability.
• Dimensions: 0.75" x 7.5" x 12.5" with 3/8" inlets and GVW 18k lbs.

Electric Fan:

• Universal 12 volt high performance 6 inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.

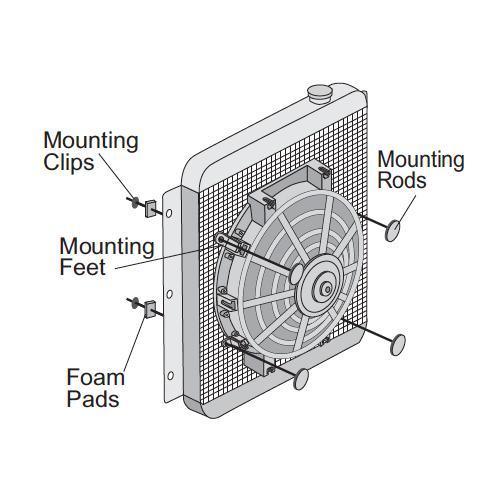

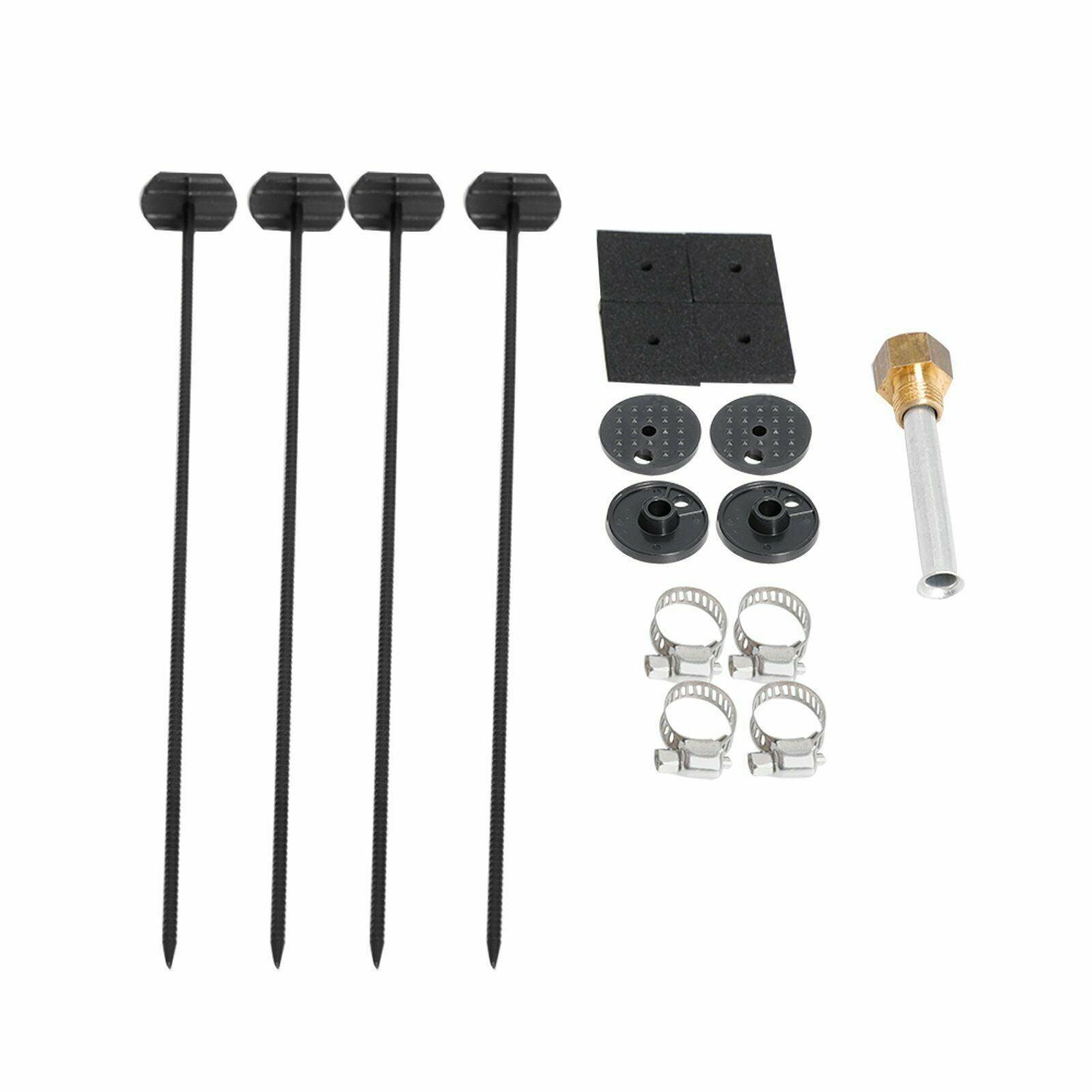

• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

• Universal AN in-line electric fan thermostat temperature switch kit.
• 1/8 inch NPT brass thread-in probe and dual pin disconnect switch.
• Preset to power fan or 12v accessory at the selected temperature.
• Anodized aluminum barbed straight push-on hose fitting adapters.
• Measures temp of any liquid including oil, water and coolant fluid.
