Electric Fan:

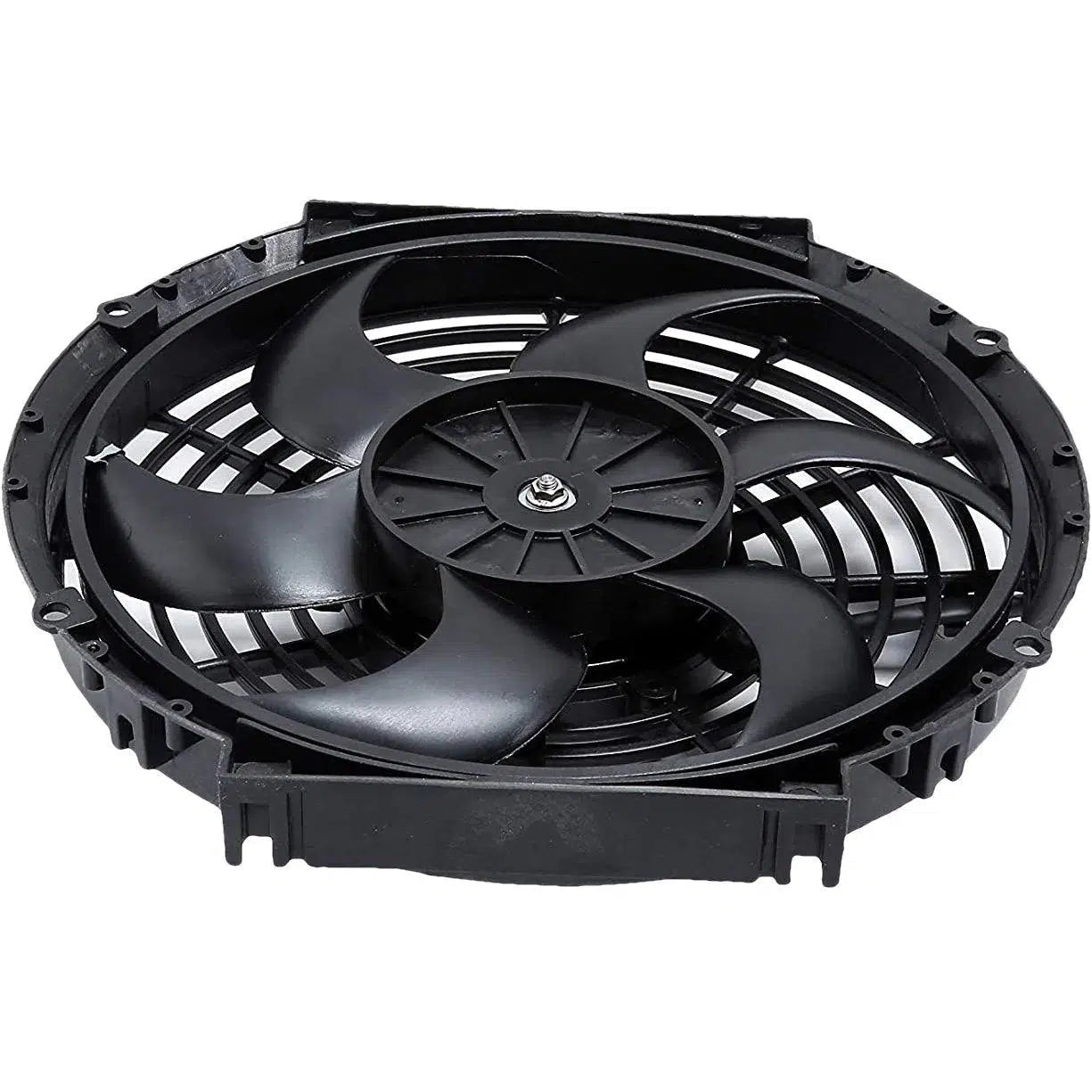

• Universal 12 volt high performance 10" inch slim electric cooling fan.
• Upgraded 130 watt motor draws 13 amps, producing over 2260 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 11.5" x 10.75" x 3" thickness at center and 1.4" at edge.

Wiring Kit:

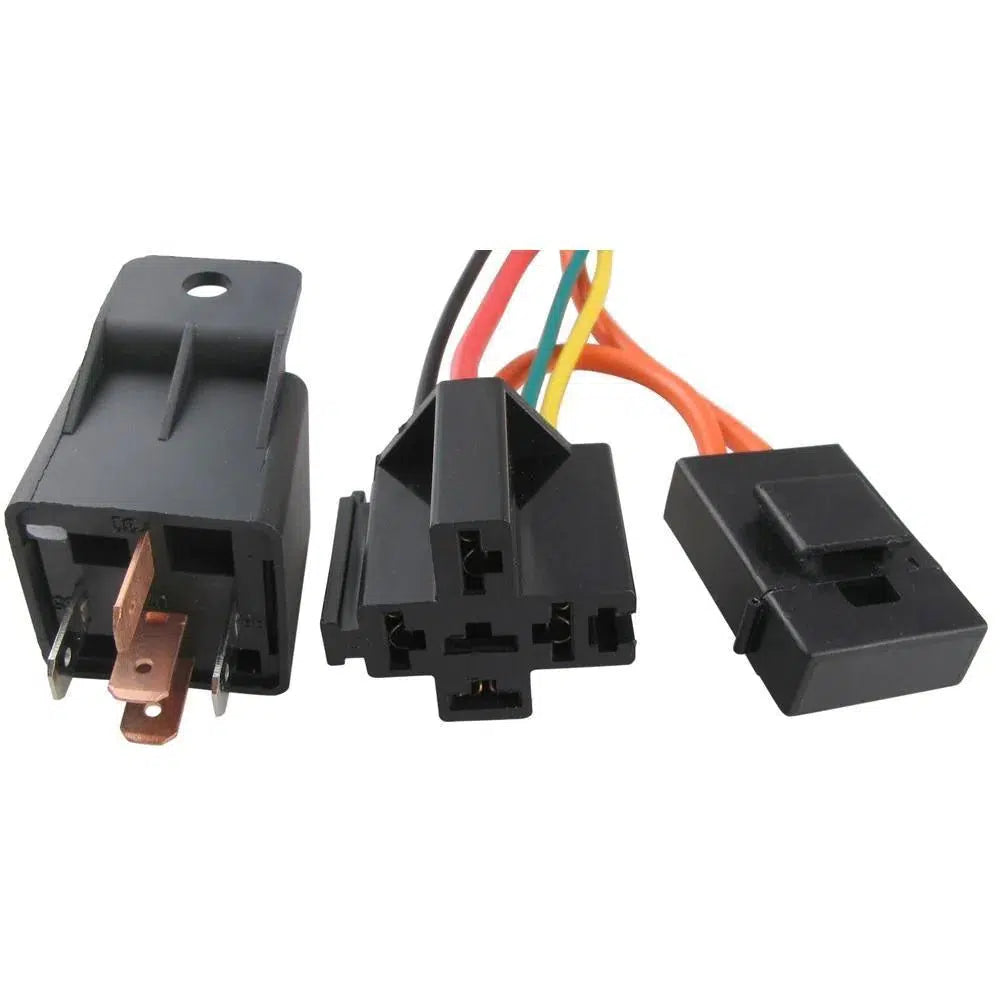

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Fitting:

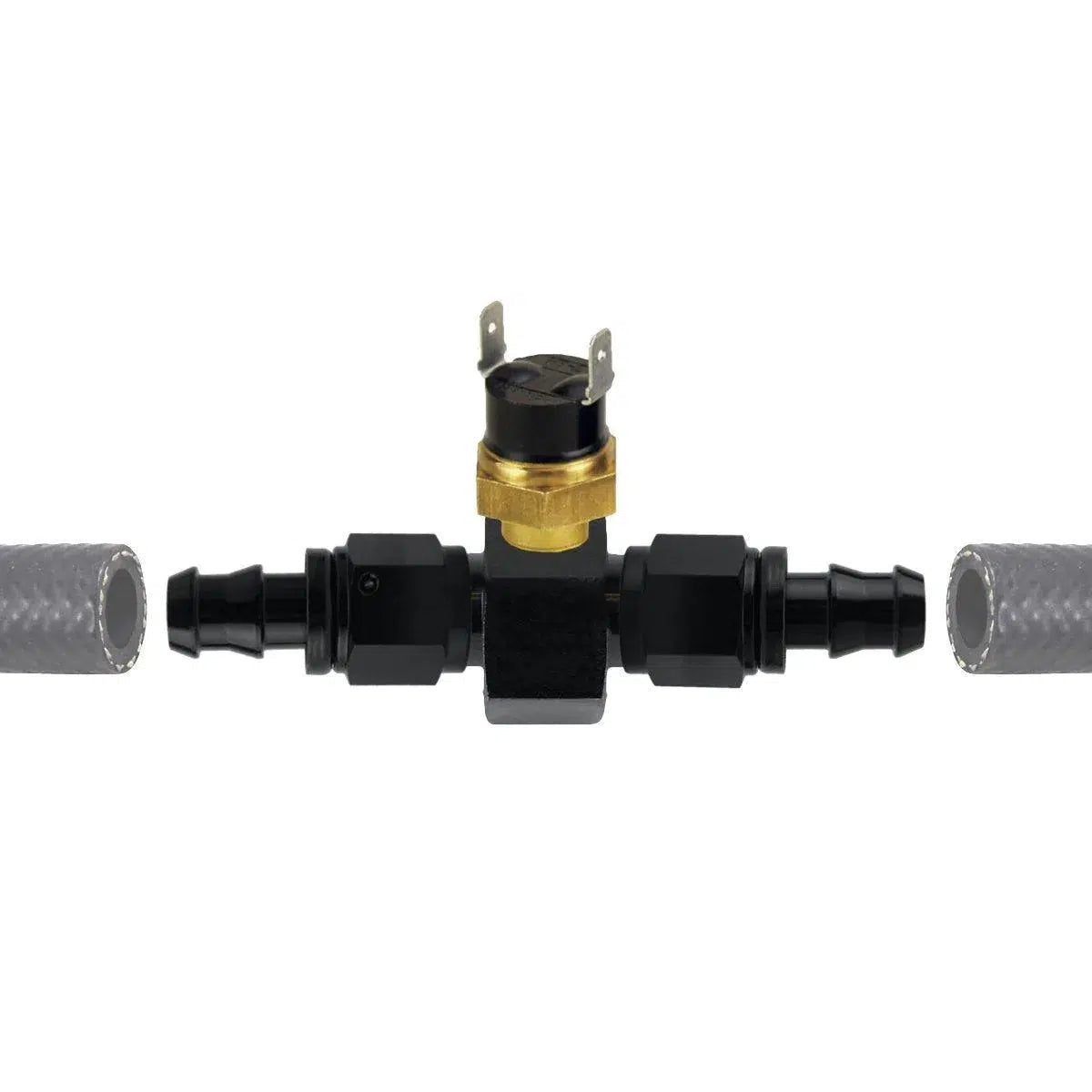

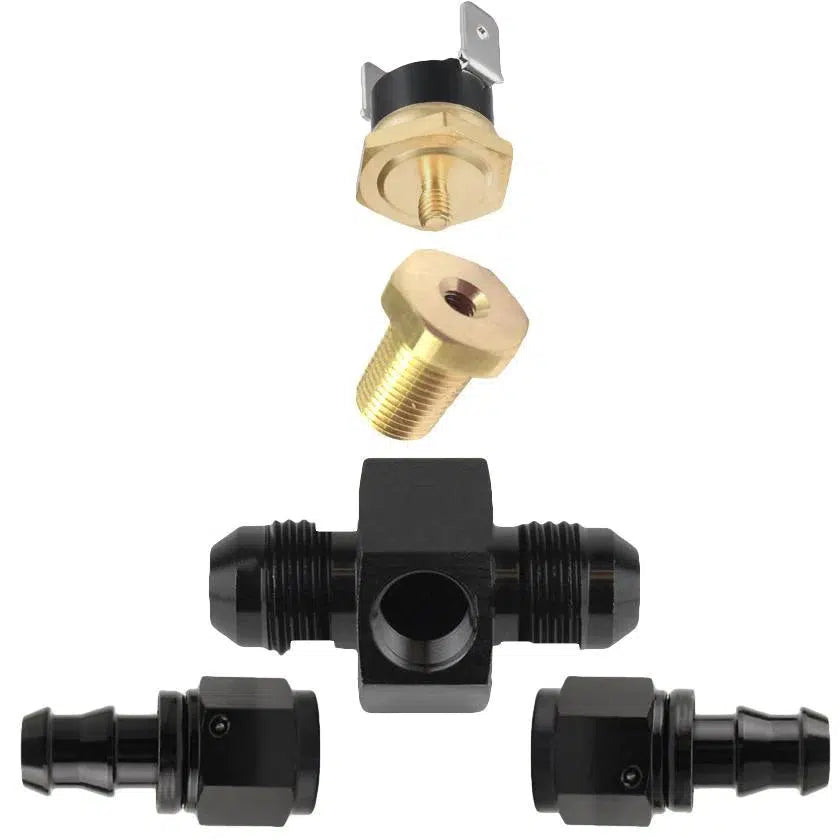

• Universal AN in-line electric fan thermostat temperature switch kit.
• 1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
• Preset to power fan or 12v accessory at the selected temperature.
• Anodized aluminum barbed straight push-on hose fitting adapters.
• Measures temp of any liquid including oil, water and coolant fluid.
